UNDER VEHICLEMONITORING SYSTEM
The Under Vehicle Monitoring System is a security system that scans the entire underside of a vehicle with a scanning camera as it passes through security facilities or checkpoints, displaying clear color images in real-time on a monitor. It can detect and compare in real-time whether explosives, weapons, or other dangerous or illegal items are hidden under the vehicle, and it can scan the vehicle underside regardless of the vehicle's speed (up to 60km/h) or length.
Application
Used in places such as security facilities and checkpoints to inspect the underside of incoming/outgoing vehicles for attached explosives, weapons, and other dangerous or illegal substances.
Configuration
Under vehicle scanner, central control unit, vehicle detection sensor, license plate recognition system (optional)
Features
Dual-use hybrid vehicle scanner
Auto-detects hidden threats
Efficient with network and dual monitors
Ultra HD underside imaging
Scans while vehicle drives normally
Switchable fixed/portable setup
Captures exterior and license plate
Images zoom up to 16x and printable
Specifications
Line Scan Camera
| Item | Specification |
|---|---|
| Camera | Color digital line scan camera |
| Sensor type | Color line CCD |
| Vehicle speed | Up to 60km/h |
| Field of view | 130° |
| Lighting | Dual LED |
Central Control Unit (CPU & PSU)
| Item | Specification |
|---|---|
| Processor | Intel i7 or higher |
| Memory | 16GB or higher |
| Hard disk | 2TB or higher |
| Monitor | High-definition dual monitor |
4K Real Image Scan & Software
Installation Type

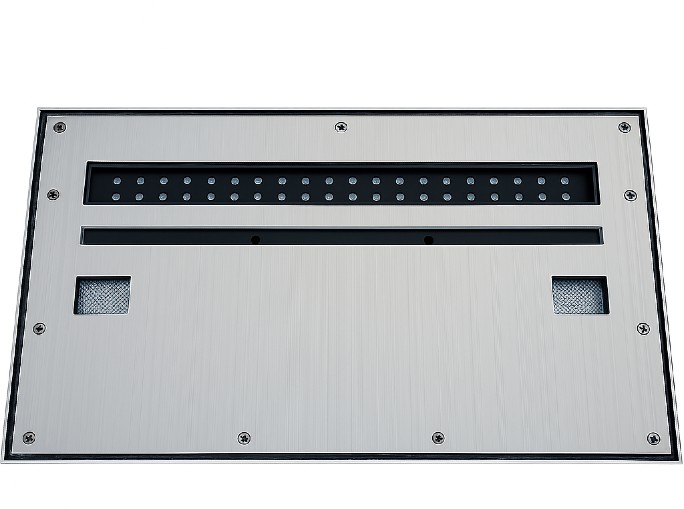

Flush-mounted Type

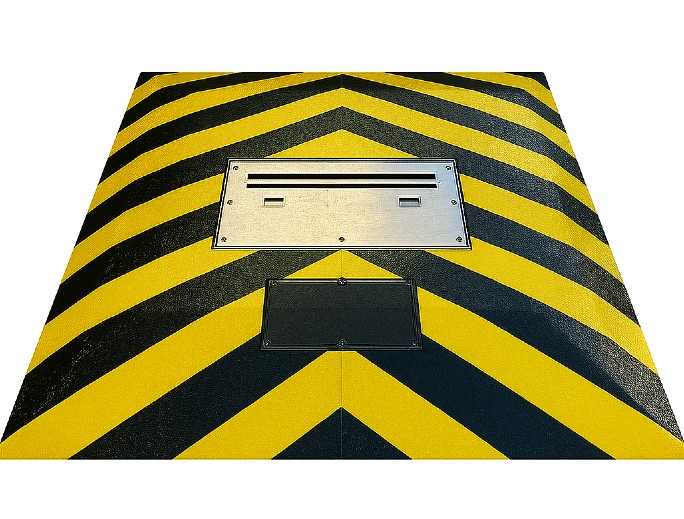

Portable Type
Patents and Certifications
Installation History
Domestic Installations
- Korea Gas Corporation key facilities
- Multiple domestic airports
- Regional thermal power plant headquarters
- Multiple regional thermal power plants
Overseas Installations
- Multiple overseas Korean embassies
