UNDER VEHICLE MONITORING SYSTEM
Image scan when passing through the vehicle The image of the bottom of the vehicle is automatically displayed
on the monitor in color with the camera, allowing you to check in real time whether explosives or weapons are hidden.
You can scan sub images regardless of vehicle speed (less than 30 km / h) and length.
Purpose of Use
Monitoring the under portion of the vehicle that enters security area
Composition
- Under Vehicle Monitoring System, Central Control Unit, Vehicle Number Plate Recognizer (Optional)
Characteristic of product
Dual Under Vehicle Monitoring System for Hybrid Vehicle applicable built-in type and projected type both
Automatic monitoring for the hidden explosive matters and arms under the vehicle
Simultaneous saving for exterior appearance and number plate of vehicle
Capable of 8 times Magnification and print-out for the stored image
Proceeding of objective vehicles with normal speed on the scanner on the surface of road
Capable to provide in types of fixed or portable
Strengthen the operational efficiency by the network configuration dual monitor support
Display image of under vehicle on monitor after auto-scanning for the passed vehicle
Specification of product
Line Scan Camera
| Classification | Data |
|---|---|
| Camera | Color Digital Lin Scan Camera |
| Sensor Type | Tri Liner |
| Proceeding Speed | Proceed with normal speed on the scanner |
| Viewing Angle | 180 ° |
| Lights | LED |
Central Control Unit (CPU & PSU)
| Classification | Data |
|---|---|
| Processor | Quad-core |
| Memory | 2GB |
| Hard Disc | 500GB or Higher |
| Monitor | 32 Inch Dual Monitor |
Vehicle search engine

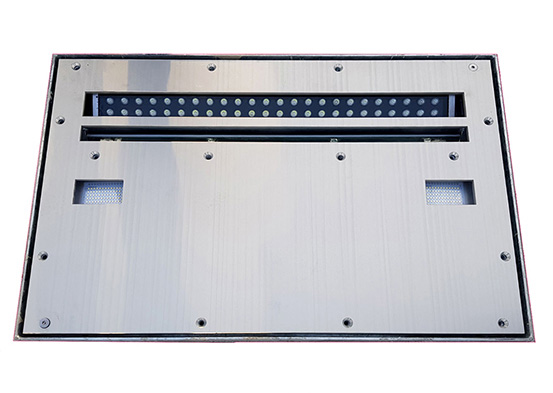

Buried installation type

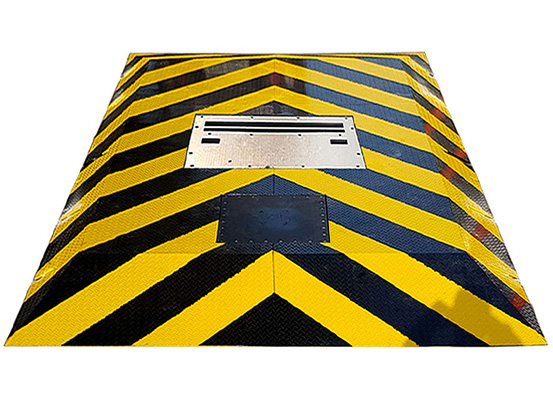

Type is capable of moving
Software
Patent and Certification
Vehicle undercarriage searcher installation history
Domestic installation history
Korea Gas Corporation production base
Korea Airports Corporation (Busan)
Korea Western Power Co., Ltd. (Taean)
Korea East-West Power Co., Ltd. (Dangjin Thermal Power Headquarters)
Korea East-West Power Co., Ltd. (Each Headquarters)
Overseas installation history
China
Beijing Embassy
Turkey
Turkish Embassy
